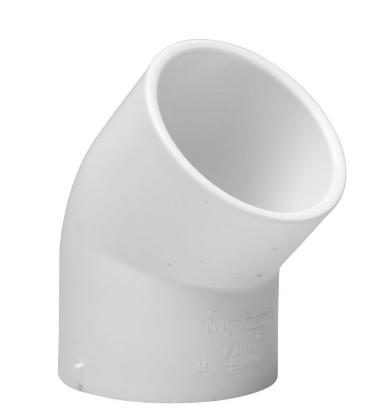

CAT 10 45° Elbow All Sizes

CAT 10 45° Elbow All Sizes. 15mm to 200mm Elbows are used to provide 45° changes in direction in pipelines. Size mm C L 15 17.5 33 20 23.7 34.5 25 30 39.5 32 38.8 44.5 40 47.9 40 50 60 46 80 78.7 81.5 100 102.2 95 150 155 125 155 163 129 200 218 181

Availability:

$1.65

Description

CAT 10 45° Elbow All Sizes.

15mm to 200mm

Elbows are used to provide 45° changes in direction in pipelines.

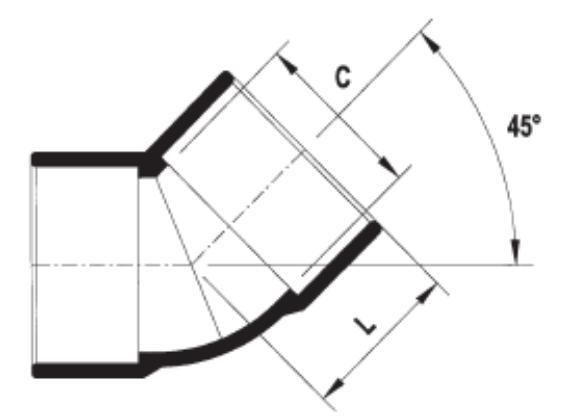

Size mm C L
15 17.5 33
20 23.7 34.5
25 30 39.5
32 38.8 44.5
40 47.9 40
50 60 46
80 78.7 81.5
100 102.2 95
150 155 125
155 163 129
200 218 181
